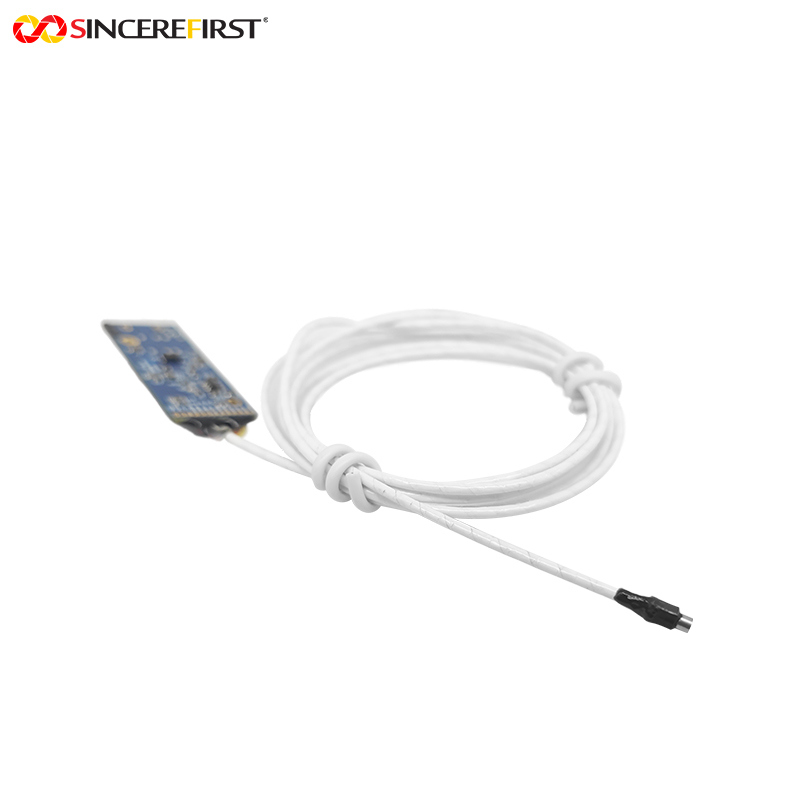

This is a Low-Distortion OH01A10 CMOS USB2.0 Endoscope Camera Module. Centered on the OmniVision OH01A10 CMOS color image sensor, it is a professional device designed for dynamic observation in narrow spaces, catering to multiple scenarios including medical care, industry, and scientific research. The module is equipped with 1MP effective pixels, supports 1280×800 native resolution, and can stably output 720P@60FPS high-definition dynamic image streams. With a sensor size of 1/14.25 inch and a pixel size of 1.116 μm×1.116 μm, it achieves dual guarantees of detail clarity and dynamic performance within a compact volume.

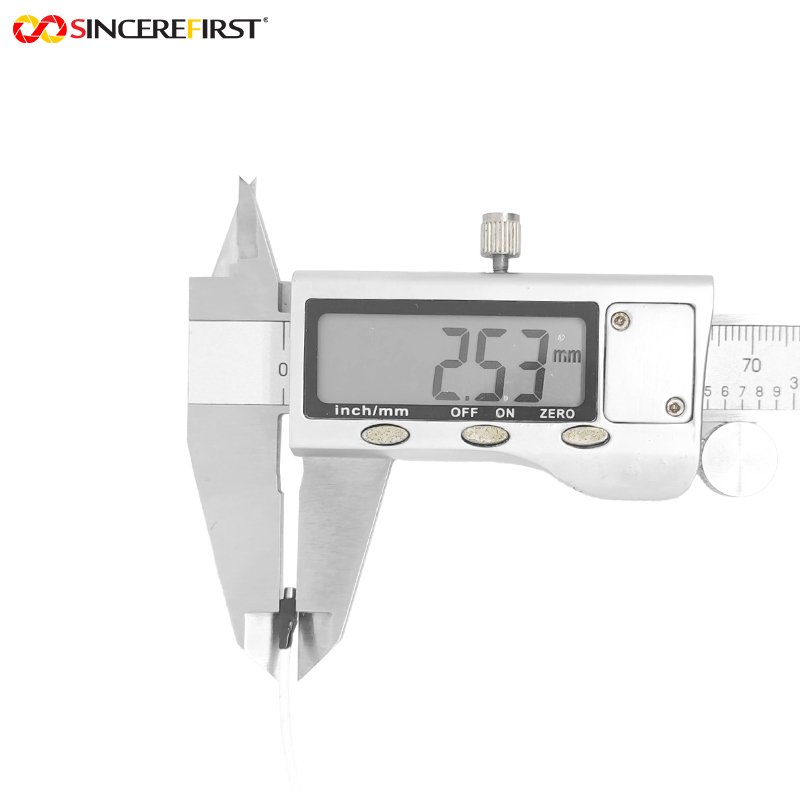

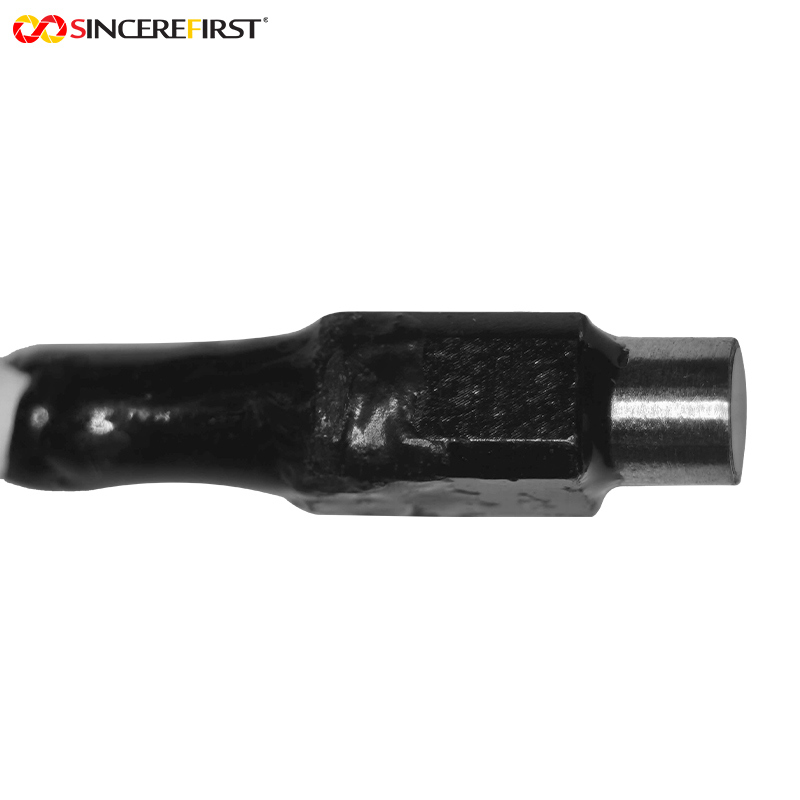

In terms of optical performance, the module features a 95° wide field of view (DFOV), paired with a 1.25mm fixed focal length, an F4.0 aperture, and a 10~100mm manual focusing range—allowing flexible adjustment of clarity based on observation targets. Meanwhile, its TV distortion is strictly controlled at < -2%, preventing stretching or compression at the image edges. For structural design, it adopts a Separated layout with a lens diameter of only 3.3mm, enabling easy access to narrow spaces such as thin tubes and deep cavities. It can also be optionally equipped with 4 integrated 0201-type LED fill lights to handle low-light environments.
For the interface, it uses a Micro USB port, supports the UVC universal video protocol, and is seamlessly compatible with mainstream operating systems such as Windows, Linux, and macOS. In the production process, SMT (Surface Mount Technology) and AA (Active Alignment) processes are adopted to ensure the consistency and stability of mass-produced products. Additionally, it has passed international certifications and tests including CE, FCC, RoHS, and Reach, meeting compliance requirements for use in different regions around the world.
| Product Name |
CMOS UVC Endoscope Camera Module |
|
Sensor |
OH01A10 CMOS Sensor |
| Resolution | 12080x800 |
|
FOV |
D95° |
|
F.NO |
4.0 |
|
Diameter |
3.3mm |
|
Max Frame Rate |
60FPS |
|
Interface |
USB 5Pin, USB2.0 |
|
Warranty |
10 Years |
|
Certification |
CE, FCC, REACH, ISO, RoHS |
![]()
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
![]()
![]()
![]()
![]()
![]()
![]()
