OV5640 Sensor Auto Focus 5MP HD Image CMOS MIPI Interface Camera Module

OV5640 Sensor Auto Focus 5MP HD Image CMOS MIPI Interface Camera Module

Product Description:

The OV5640 Sensor Auto Focus 5MP HD Image CMOS MIPI Interface Camera Module ,integrates a VCM (Voice Coil Motor) actuator for precise autofocus, with a focus range spanning 10cm to infinity—enabling seamless switching between close-up detail capture and distant full view imaging without manual adjustment. The optical system features a 3.37mm focal length, F/2.8 aperture, and 67° diagonal field of view, delivering balanced light intake and natural perspective. TV distortion is strictly controlled within 1.0%, ensuring geometric accuracy for measurement-critical applications. The module outputs YUV format via a high-speed MIPI interface, providing ample bandwidth for real-time HD video transmission with strong performance of anti-jamming. RoHS compliant, it is engineered as a versatile imaging solution for embedded development, intelligent recognition, industrial vision, and consumer electronics.

Features:

1.Precision Autofocus Across Distances: The built-in VCM driver enables continuous focus adjustment from 10cm to infinity, eliminating the need for manual focus mechanisms. This ensures crisp imaging whether capturing barcode details at close range or monitoring wide areas at distance—ideal for applications requiring variable working distances. 2.High Geometric Fidelity: With TV distortion below 1.0% and a 67° standard field of view, the module reproduces scenes with minimal barrel or pincushion distortion. This geometric accuracy is critical for machine vision tasks like dimension measurement, object positioning, and optical character recognition. 3.High-Bandwidth MIPI Interface: The MIPI output interface supports high speed data transmission with robust noise immunity, enabling real-time 5MP video streaming even in electrically noisy industrial environments. This ensures frame integrity for time-sensitive vision applications. 4.Versatile All-Round Imaging: The F/2.8 aperture strikes an optimal balance between low-light sensitivity and depth of field, while the 3.37mm focal length provides a natural perspective suitable for both near-field inspection and far-field surveillance—one module, multiple use cases.

Technical Parameters:

Applications:

• Smart Home: The large-pixel advantage allows the camera to clearly recognize the activity status of family members at nighttime or in low-light conditions; the wide FOV can cover a larger indoor area, and a single device can monitor the entire room; the compact design facilitates concealed integration into home products, maintaining aesthetics without sacrificing performance.​
• VR/AR: The 120FPS high frame rate combined with the global shutter can accurately capture fast hand movements and head rotations, providing smooth, blur-free visual data; the excellent near-infrared response characteristics support cooperation with infrared markers to achieve high-precision spatial positioning and motion tracking, enhancing the realism of immersive experiences.​
• AOI Inspection: At a 2m/s board conveying speed on SMT production lines, the global shutter freezes images of solder joints and components; the 3μm pixel resolution meets the inspection requirements for 01005 components; NIR illumination suppresses reflection interference from pads; the 10-Bit RAW data supports deep learning models in identifying hidden defects such as microcracks and cold solder joints.​

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About US:

Cooperative Brands & Customers:

Why Chooes US:

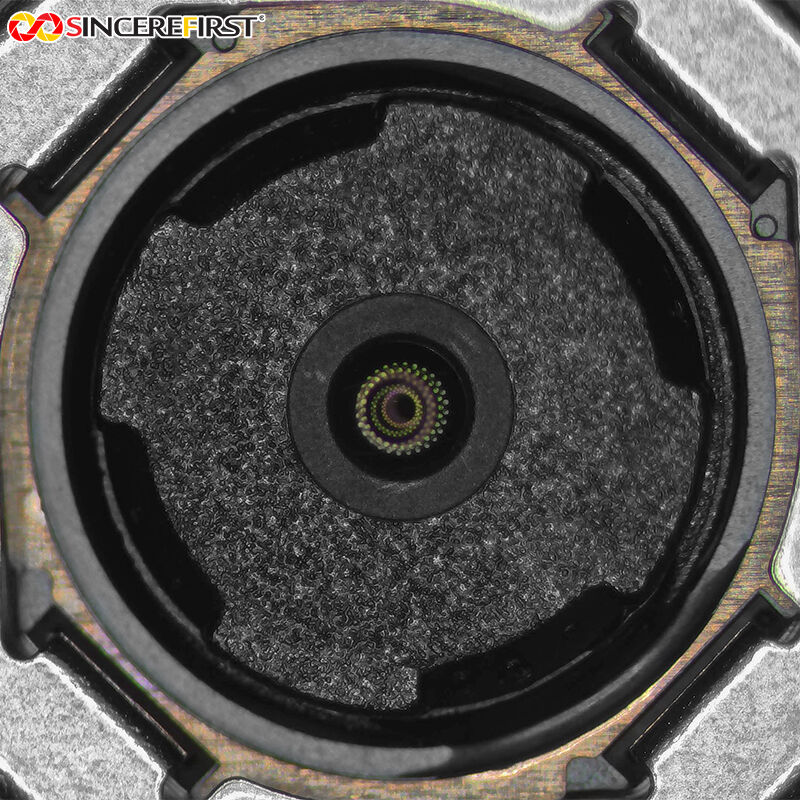

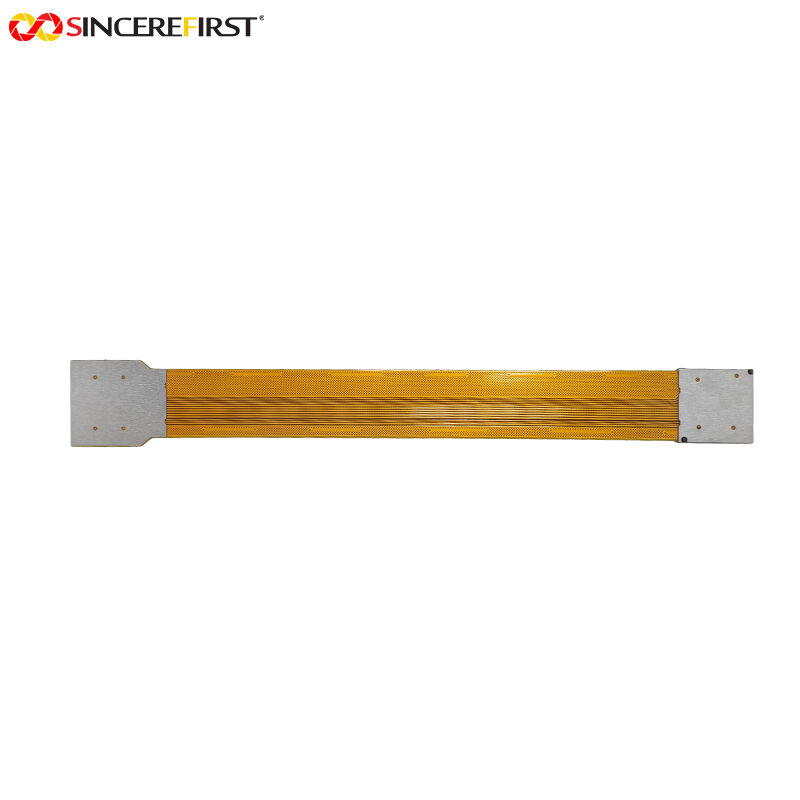

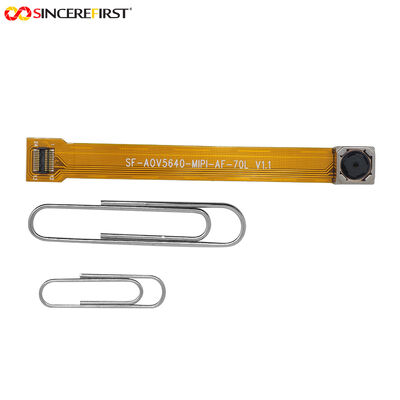

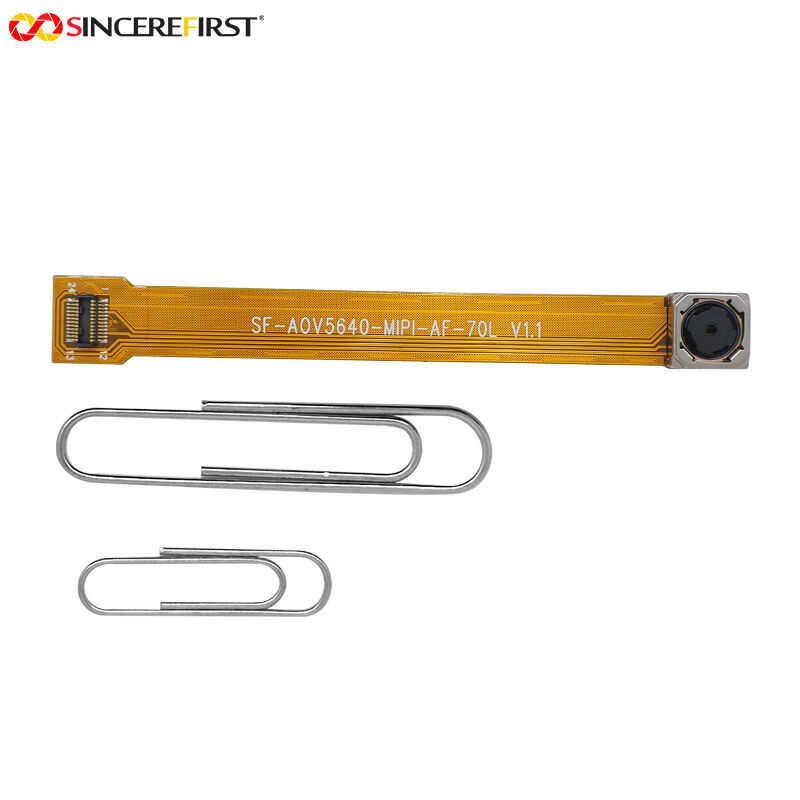

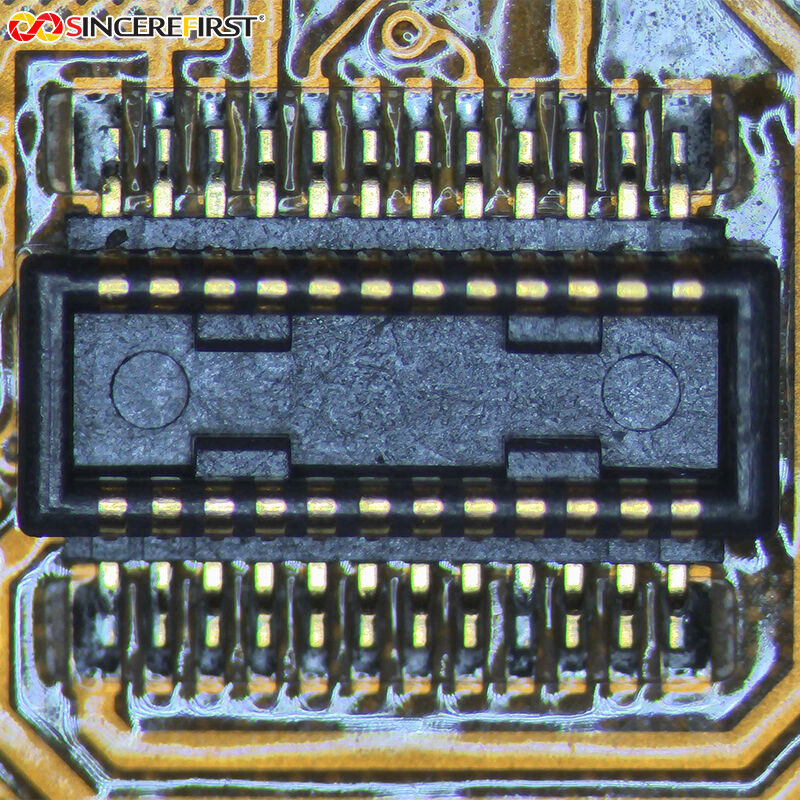

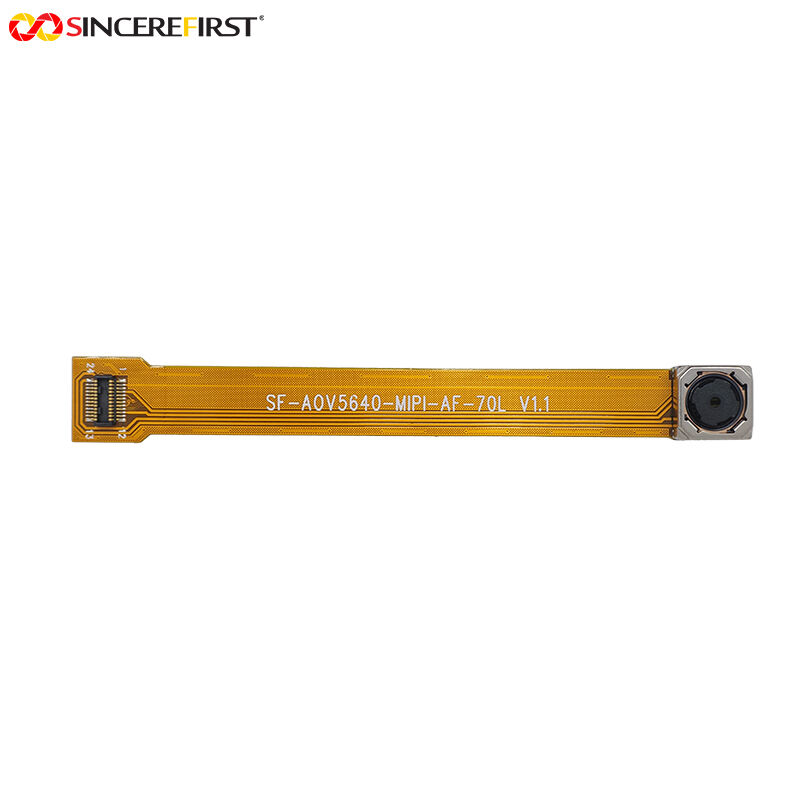

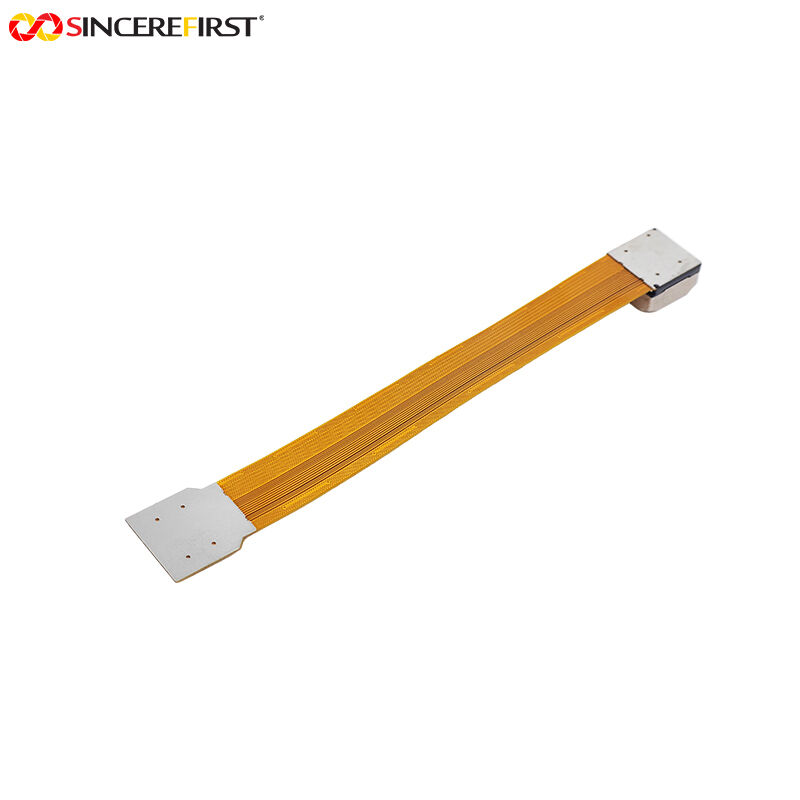

Detail Pictures:
